01060015402006
Op voorraad

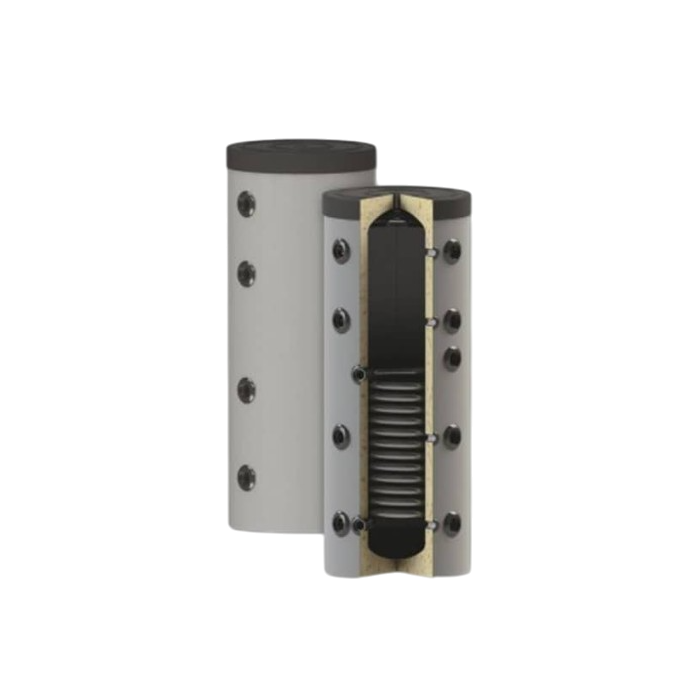

Buffervat 1000 Liter 1 Warmtewisselaar
Special Price
€ 1.303,90
€ 1.077,60
Regular Price
€ 1.533,99
€ 1.267,76
| PR 300 | PR 500 | PR 800 | PR 1000 | PR 1500 | PR 2000 | PR 2500 | PR 3000 | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | L | 300 | 500 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | |||||||||||||||||||||||||
| Height without insulation / with insulation | H, Hi, mm | 1410/1460 | 1610/1660 | 1860/1910 | 2040/2090 | 2150/2220 | 2132/2182 | 2482/2532 | 2246/2296 | |||||||||||||||||||||||||
| Mounting height | mm | 1430 | 1640 | 1900 | 2075 | 2220 | 2220 | 2542 | 2332 | |||||||||||||||||||||||||
| Diameter without insulation /with insulation | D, mm | Ø 650/750 | Ø 650/850 | Ø 790/990 | Ø 790/990 | Ø 1000/1200 | Ø 1200/1400 | Ø 1250/1450 | Ø 1400/1600 | |||||||||||||||||||||||||
| Operating pressure/Max. buffer temperature | bar/0C | 3/95 | 3/95 | 3/95 | 3/95 | 3/95 | 3/95 | 3/95 | 3/95 | |||||||||||||||||||||||||
| Operating pressure /Max. coil temperature | bar/0C | 16/110 | 16/110 | 16/110 | 16/110 | 16/110 | 16/110 | 16/110 | 16/110 | |||||||||||||||||||||||||
| Recommended boiler size, connected to buffer tank | kW | 6-10 | 10-17 | 15-27 | 18-33 | 27-50 | 36-67 | 46-84 | 55-100 | |||||||||||||||||||||||||
| Weight without insulation/with insulation | kg, kg i | 78/88 | 104/116 | 152/168 | 180/198 | 272/295 | 330/356 | 362/392 | 476/511 | |||||||||||||||||||||||||
| Sleeve for Electric heating element | В, mm, Rp 11/2” | 760 | 790 | 920 | 1130 | 1130 | 1170 | 1170 | 1184 | |||||||||||||||||||||||||
| Heat carrier | С1, mm, Rp11/2” | 1170 | 1370 | 1573 | 1742 | 1808 | 1775 | 2126 | 1797 | |||||||||||||||||||||||||
| Heat carrier | С2, mm, Rp11/2” | 1390 | 1520 | 1635 | ||||||||||||||||||||||||||||||
| Heat carrier | С3, mm, Rp11/2” | 880 | 990 | 1305 | 1420 | 1474 | ||||||||||||||||||||||||||||
| Heat carrier | С4, mm, Rp11/2” | 770 | 880 | 980 | 1060 | 1085 | 1170 | 1420 | 1184 | |||||||||||||||||||||||||
| Heat carrier | С5, mm, Rp11/2” | 540 | 620 | 670 | 730 | 765 | 735 | 735 | 864 | |||||||||||||||||||||||||
| Heat carrier | С6, mm, Rp11/2” | 150 | 150 | 170 | 170 | 235 | 230 | 230 | 344 | |||||||||||||||||||||||||
| Heat carrier | С7, mm, | Rp1/2”/975 | Rp11/2”/1170 | |||||||||||||||||||||||||||||||
| Sensor sleeve | А1, mm, Rp1/2” | 410 | 410 | 570 | 580 | 875 | 920 | 920 | 910 | |||||||||||||||||||||||||
| Sensor sleeve | А2, mm, Rp1/2” | 1060 | 1120 | 1290 | 1500 | 1500 | 1645 | 1645 | 1660 | |||||||||||||||||||||||||
| Sensor sleeve | А3, mm, Rp1/2” | 1010 | 1120 | 1290 | 1450 | 1525 | 1625 | 1625 | 1590 | |||||||||||||||||||||||||
| Sensor sleeve | А4, mm, Rp1/2” | 420 | 460 | 465 | 495 | 520 | 500 | 500 | 610 | |||||||||||||||||||||||||
| Air vent | F, mm, Rp11/2” | 1410 | 1610 | 1860 | 2040 | 2150 | 2132 | 2482 | 2246 | |||||||||||||||||||||||||
| Coil capacity S1 | S1 L | 6,2 | 10,5 | 17,9 | 18,5 | 21 | 24,6 | 24,6 | 29,9 | |||||||||||||||||||||||||
| Heat exchange surface S1 | S1 m2 | 1,0 | 1,7 | 2,9 | 3,0 | 3,4 | 4,0 | 4,0 | 4,9 | |||||||||||||||||||||||||
| Inlet/Outlet Lower coil S1 | S1i/S1o, mm, Rp1” | 660/260 | 770/250 | 820/310 | 880/310 | 895/375 | 980/380 | 980/380 | 1082/477 | |||||||||||||||||||||||||
